Product Overview
TPP06 — Smart 6-Button Touch Scene Panel TPP06
Model: Model: TPP06 |Category:Category: Smart Central Control Panel
The TAOS TPP06 is a smart 6-button touch scene panel engineered by Zhejiang TAOS Electric (est. 2000) for the Smart Central Control Panel segment of the Smart Home portfolio. It is designed for Tuya / Zigbee 3.0 ecosystems, supports Alexa & Google Home voice control, and complies with CE, RoHS, FCC, IEC 62368-1 and the Tuya Develop certification programme. Listed for export to 30+ countries across the Middle East, Africa, Europe and Southeast Asia.
Why Specify TPP06?
Four engineering decisions that turn this device into a project-grade specification.
Hospitality-grade hardware
IPS panel, capacitive glass and aluminium frame survive housekeeping use; tested 50,000+ touch cycles.
Voice-+ video-intercom in one
SIP/H.264 video plus far-field microphone array — replaces the doorbell IP-phone in a single retrofit.
Local-first scenes
Up to 256 scenes execute on-panel even with no cloud — guarantees uninterrupted hospitality service.
Multi-protocol bridging
Zigbee 3.0, BLE Mesh, KNX (M3E) and Modbus — central control for the entire room and BMS handover.
Detailed Specifications
Datasheet excerpts — full datasheet PDF available on request.
|
Parameter |
Value |
|
Model |
TPP06 |
|
Buttons |
6 scene + LED ring |
|
Protocol |
Zigbee 3.0 |
|
Power |
220 V AC + Neutral |
|
Backlight |
Cool white + status RGB |
|
Box |
146×86 mm |
Certifications & Compliance
Authoritativeness signals — independent third-party verification of every test marked above.
CE Marking (EU)
EN 60669-1 / EMC Directive 2014/30/EU
UKCA
BS1363, UK market
SASO / SQM (Saudi Arabia)
SABER-registered for KSA customs clearance
SONCAP (Nigeria)
Standards Organisation of Nigeria Conformity Assessment
GCC / G-mark
Gulf Cooperation Council
ECAS
UAE market
RoHS 2.0
Free of lead, cadmium, mercury, hexavalent chromium
CB Scheme
IECEE certificate, fast-track recognition in 50+ countries
Typical Application Scenarios

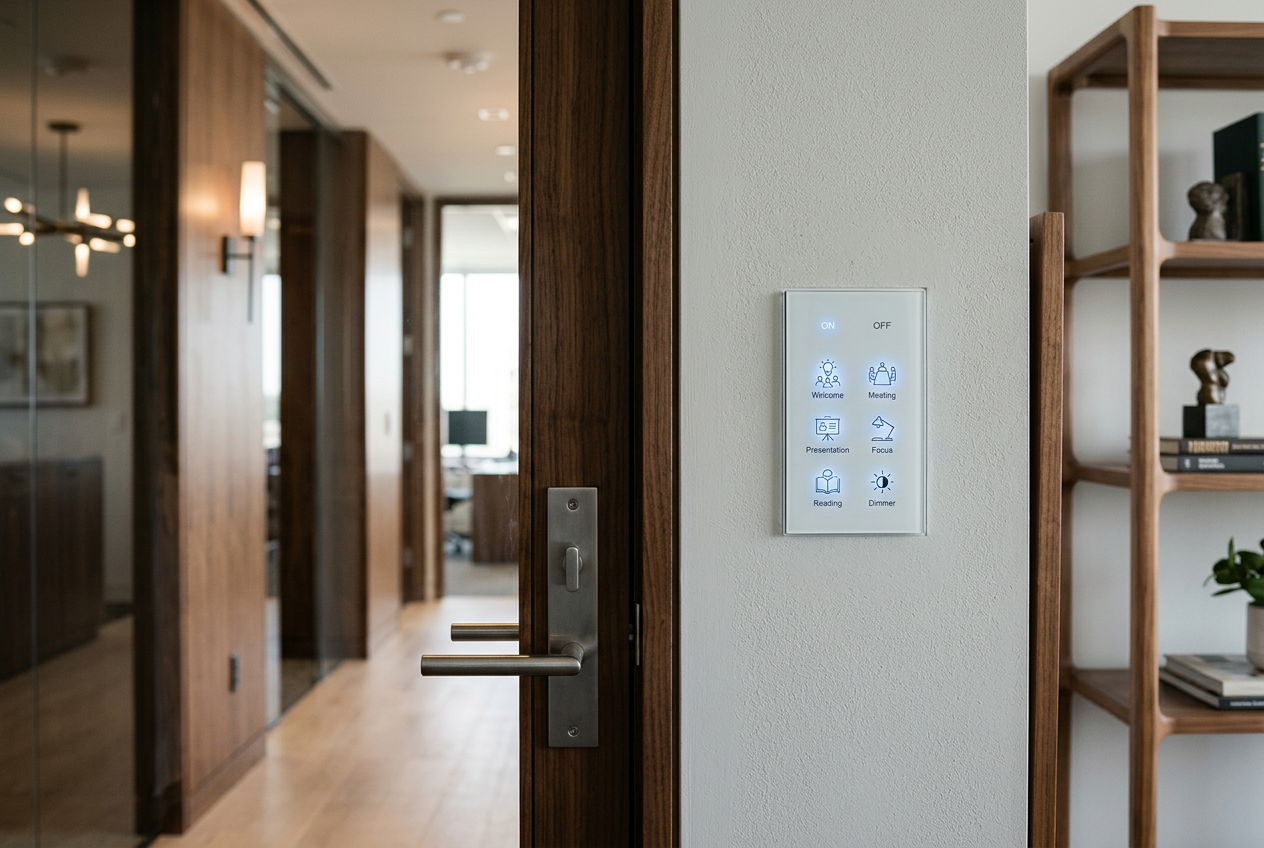

•see scene image: TPP06-panel-tpp06-executive-office-wall.png

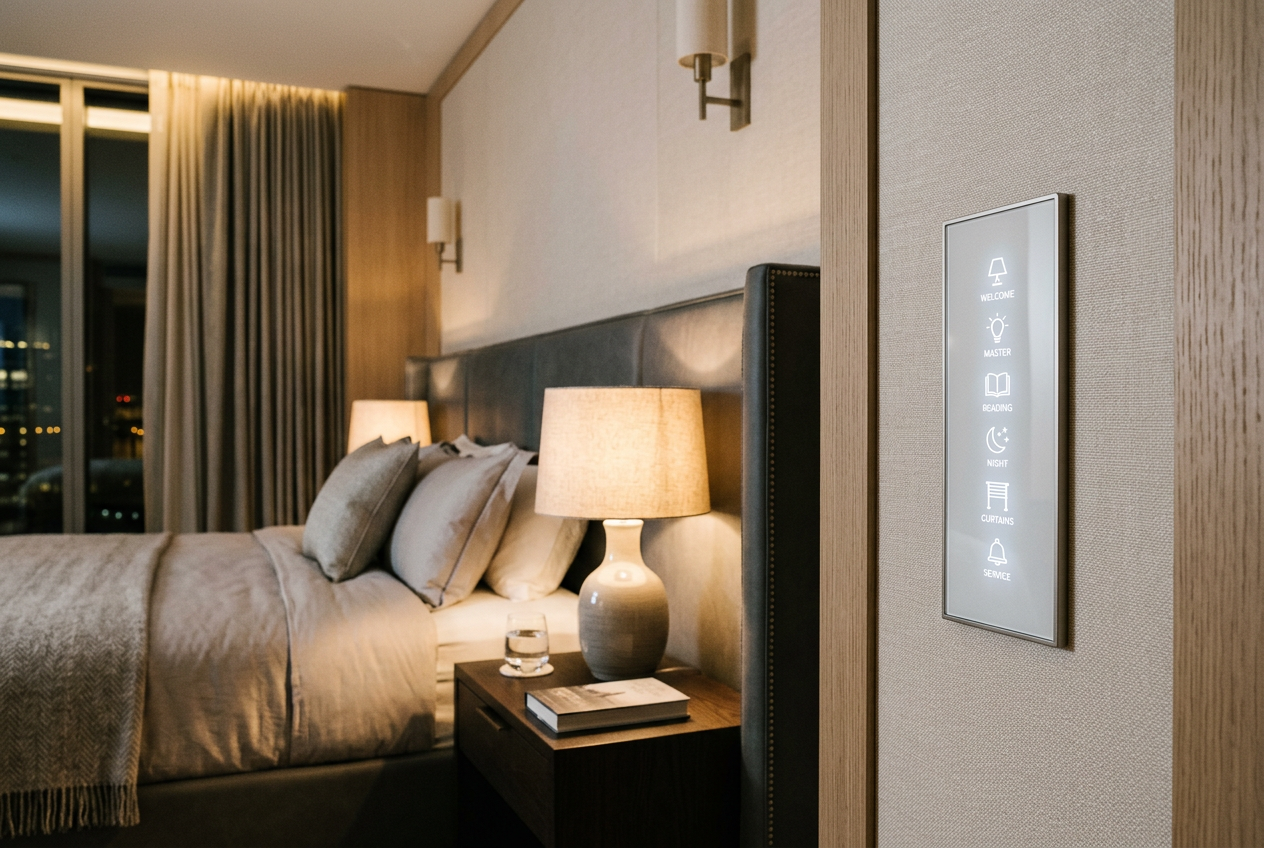

•see scene image: TPP06-panel-tpp06-hotel-suite-bedside.png
