M424 — 3A SWITCHED FCU'S
- Overview
- Recommended Products
Product Overview
M424 — 3A SWITCHED FCU'S
Model: Model: M424 |Category:Range: METAL CLAD RANGE
The Elite Elegance M424 is a 3A Switched FCU’s in the Metal Clad Range, engineered by Zhejiang Tao’s Electric (est. 2000). The Metal Clad Range is built with a 1.0 mm Q235 steel faceplate and back box (powder-coated), Bakelite function modules, PP base, and brass/silver-alloy contacts. It offers high mechanical strength, excellent fire/heat resistance, and a durable industrial finish. The easy-clean surface resists fingerprints, oil and stains, while the non-combustible metal construction ensures enhanced safety. Ideal for construction sites, factories, workshops, equipment rooms and other commercial or industrial settings. CE, BSI, SASO, SONCAP, ISO 9001, IEC 60669-1, RoHS 2.0 and CB Scheme compliance is independently certified; the SKU is registered in 30+ countries across the Middle East, Africa, Europe and SE Asia.
Why Specify M424?
Four engineering decisions that turn this device into a project-grade specification.
Surface Mounted type of Metal Fused Connection
No flex outlet — clean spec for hard-wired appliances.
3A Rated Capacity
Handles up to 0.69 kW resistive load
Back-Access Terminals
Wires from back, large plate hides all metalwork.
Universal 86 mm Box
A dedicated metal flush wall box (86×86 mm standard) across the Metal Clad Range.
Detailed Specifications
Datasheet excerpts — full datasheet PDF available on request.
|
Parameter |
Value |
|
Switch Type |
3A Switched FCU’s |
|
Current Rating |
3A |
|
Voltage Rating |
250V AC |
|
Pole |
Double Pole |
|
Installation Type |
Surface Mounted type |
|
Panel & Wall Box Material |
1.0 mm thick Q235 Steel, Powder-coated finish. |
|
Wall Box |
86 × 86 mm flush |
|
Wire Capacity |
up to 4 mm² |
Certifications & Compliance
Authoritativeness signals — independent third-party verification of every test marked above.
CE Marking (EU)
EN 60669-1 / EMC Directive 2014/30/EU
UKCA
BS1363, UK market
SASO / SQM (Saudi Arabia)
SABER-registered for KSA customs clearance
SONCAP (Nigeria)
Standards Organisation of Nigeria Conformity Assessment
GCC / G-mark
Gulf Cooperation Council
ECAS
UAE market
RoHS 2.0
Free of lead, cadmium, mercury, hexavalent chromium
CB Scheme
IECEE certificate, fast-track recognition in 50+ countries
Typical Application Scenarios

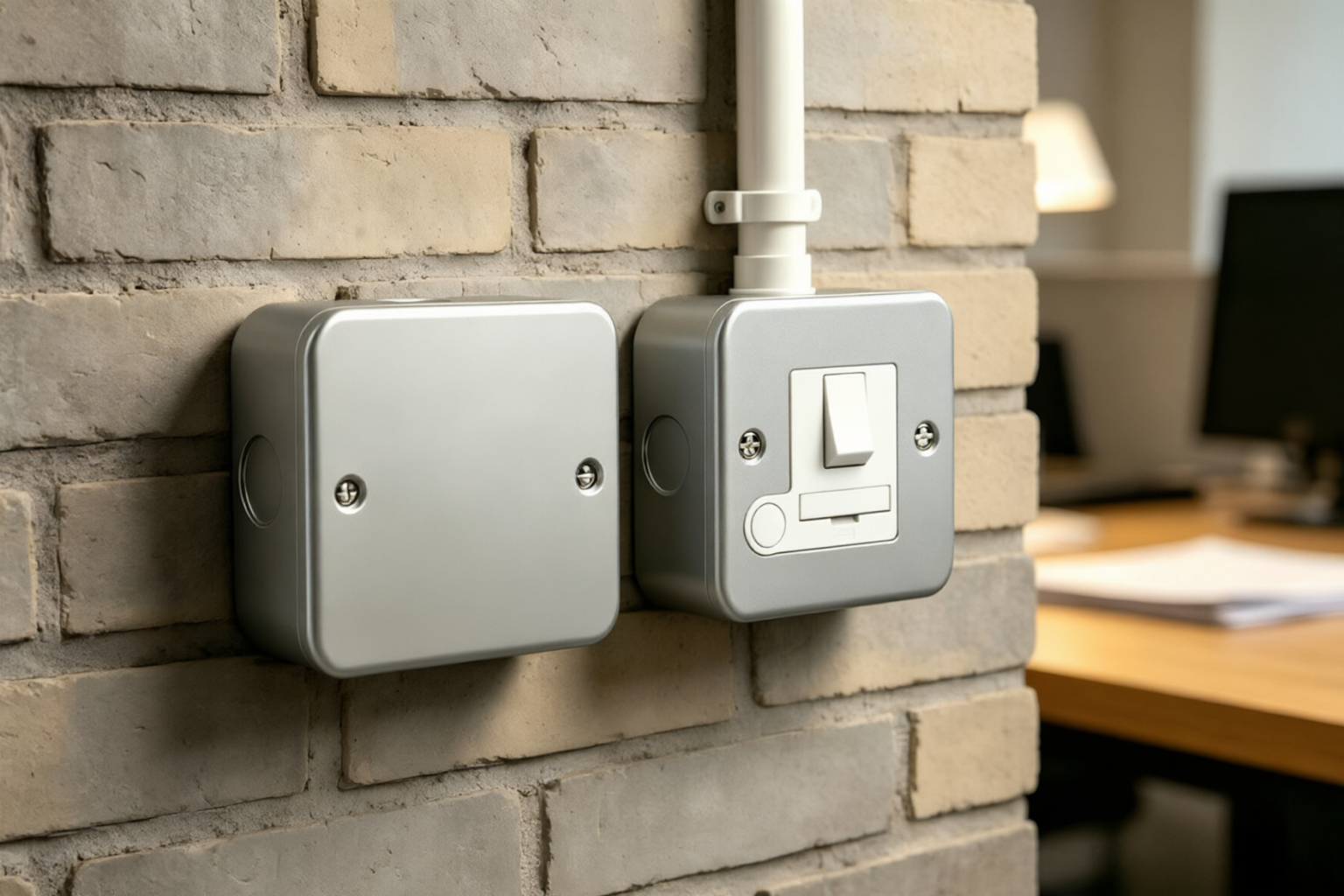

see scene image: M424-construction sites.png

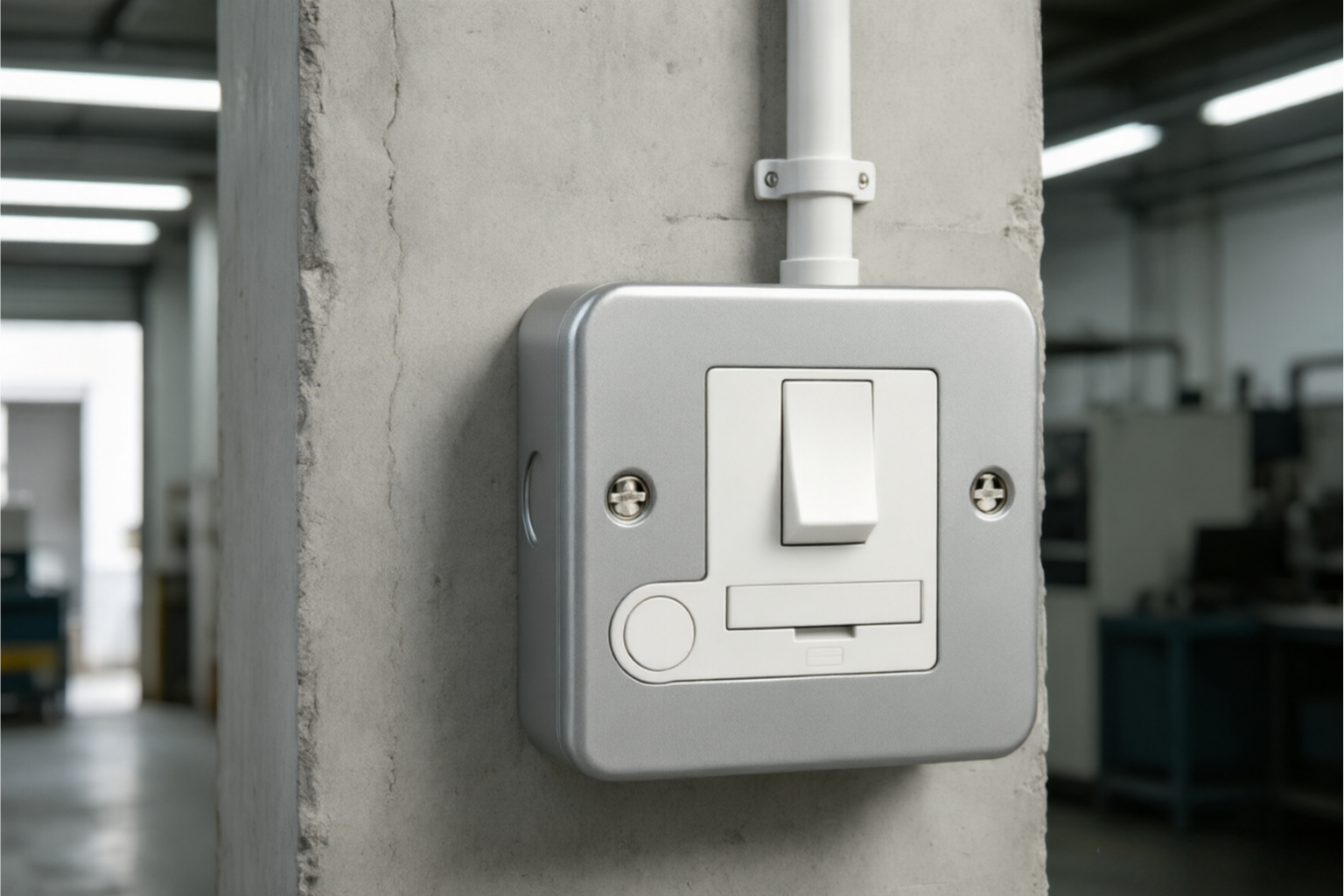

see scene image: M424-factories.png
