DL1606M-FRA — Smart Plug DL1606M-FRA (FRA single-outlet)

DL1606M-FRA — Smart Plug DL1606M-FRA (FRA single-outlet)

Inquiry
  • Overview
  • Recommended Products

Product Overview

DL1606M-FRA — Smart Plug DL1606M-FRA (FRA single-outlet)

Model: Model: DL1606M-FRA |Category:Category: Smart Plug

The TAOS DL1606M-FRA is a smart plug (fra single-outlet) engineered by Zhejiang TAOS Electric (est. 2000) for the Smart Plug segment of the Smart Home portfolio. It is designed for Tuya / Zigbee 3.0 ecosystems, supports Alexa & Google Home voice control, and complies with CE, RoHS, FCC, IEC 62368-1 and the Tuya Develop certification programme. Listed for export to 30+ countries across the Middle East, Africa, Europe and Southeast Asia.

Why Specify DL1606M-FRA?

Four engineering decisions that turn this device into a project-grade specification.

Real-time energy intelligence

Voltage, current, power and kWh streamed every 30 s — informs ESG reporting and tenant billing.

Region-specific blade design

16 socket variants cover the global market, all built on the same RF/MCU platform for fast certification.

Built-in safety stack

Over-load + over-temperature trip + child-safety shutters meet the strictest insurance requirements.

Matter-ready firmware

All 2024+ SKUs upgrade to Matter 1.2 over OTA, future-proofing channel partners.

Detailed Specifications

Datasheet excerpts — full datasheet PDF available on request.

Parameter

Value

Model

DL1606M-FRA

Plug Standard

FRA

Configuration

single-outlet

Max Load

13–16 A resistive (~2400 W @ 230 V) / 15 A @ 120 V (USA)

Protocol

Wi-Fi 2.4 GHz / Tuya

Energy Metering

Voltage / current / power / kWh, 30 s reporting

Certifications & Compliance

Authoritativeness signals — independent third-party verification of every test marked above.


CE Marking (EU)

EN 60669-1 / EMC Directive 2014/30/EU


UKCA

BS1363, UK market


SASO / SQM (Saudi Arabia)

SABER-registered for KSA customs clearance


SONCAP (Nigeria)

Standards Organisation of Nigeria Conformity Assessment


GCC / G-mark

Gulf Cooperation Council


ECAS

UAE market


RoHS 2.0

Free of lead, cadmium, mercury, hexavalent chromium


CB Scheme

IECEE certificate, fast-track recognition in 50+ countries

Typical Application Scenarios

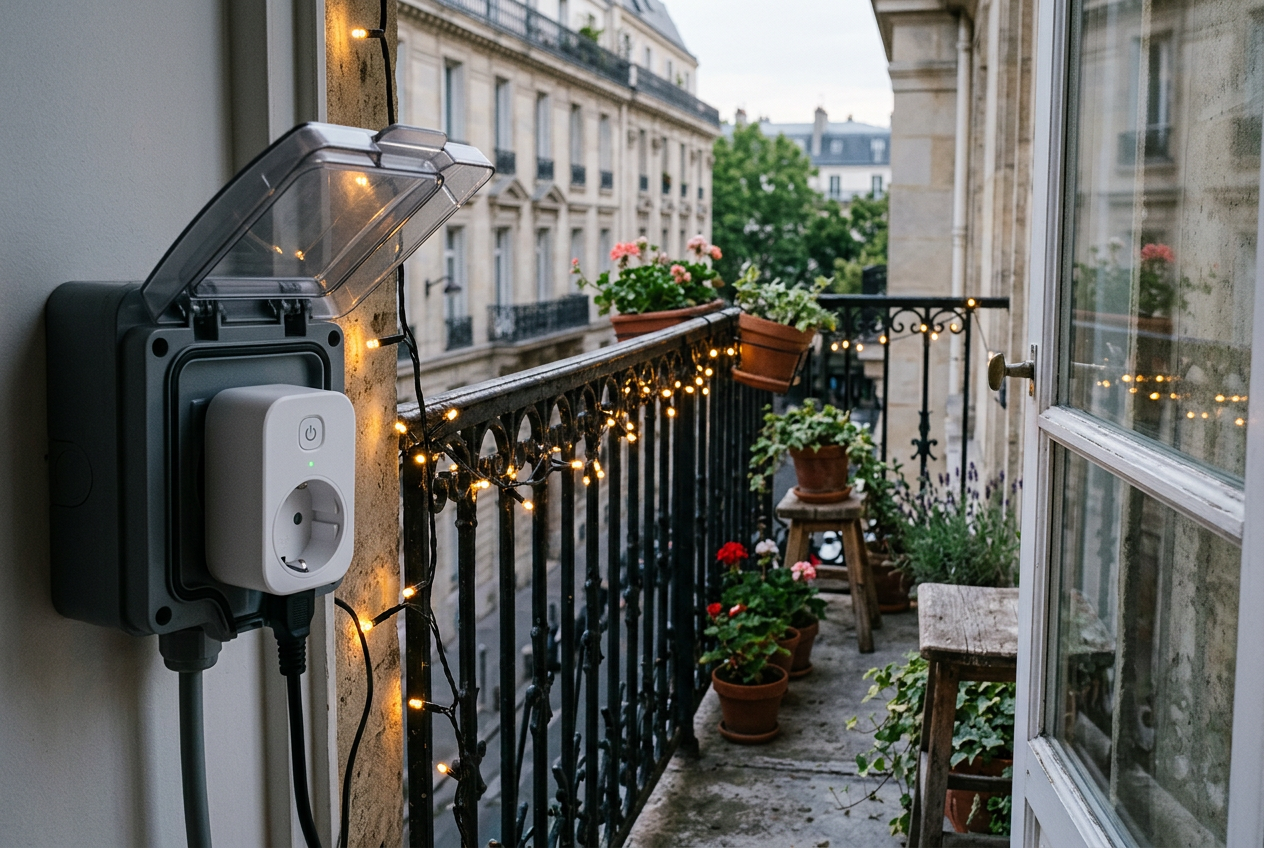

•see scene image: DL1606M-FRA-plug-fr-balcony-string-lights.png
Plug Fr Balcony String Lights

•see scene image: DL1606M-FRA-plug-fr-balcony-string-lights.png

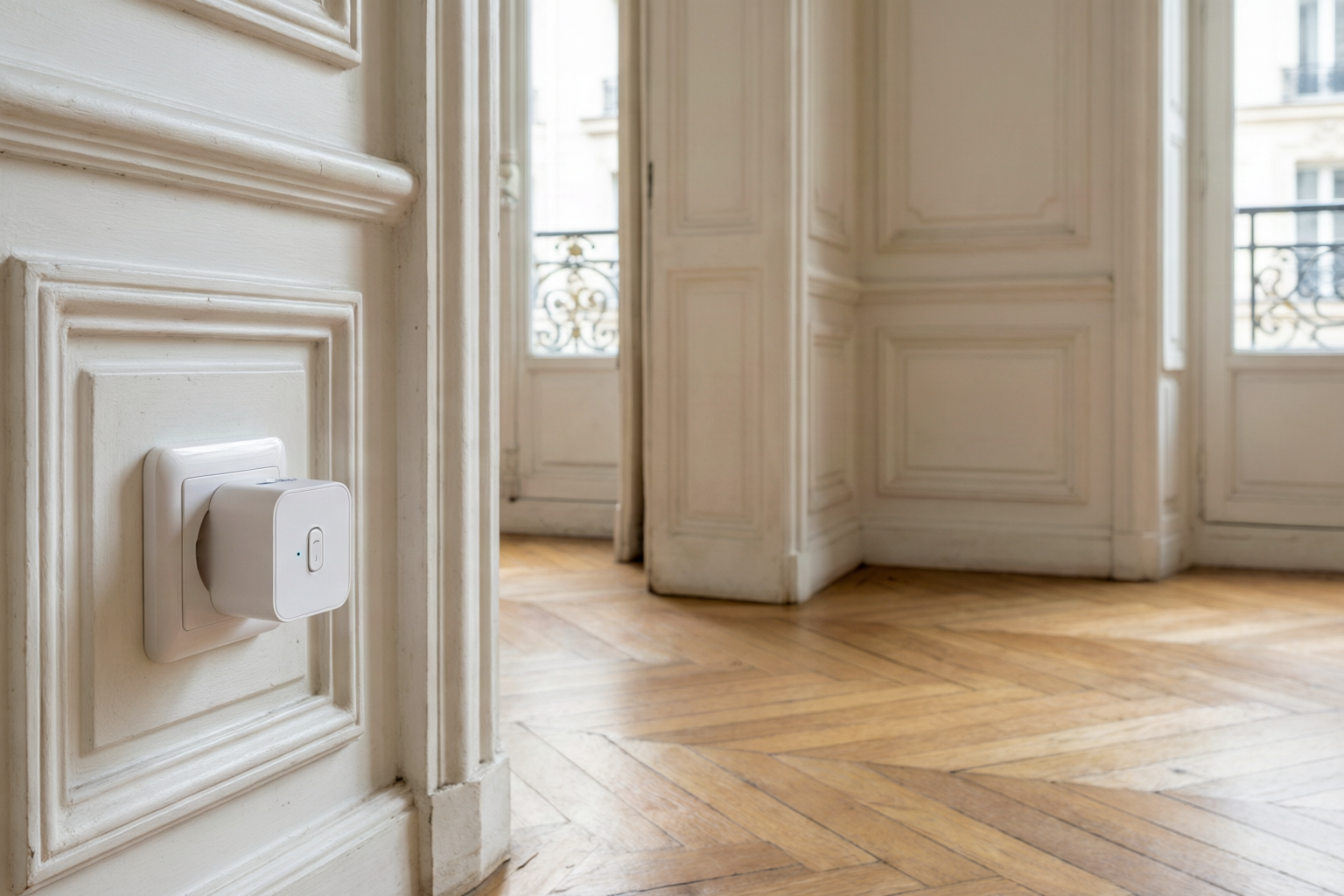

• see scene image: DL1606M-FRA-plug-fr-haussmann-living-room.png
Plug Fr Haussmann Living Room

• see scene image: DL1606M-FRA-plug-fr-haussmann-living-room.png

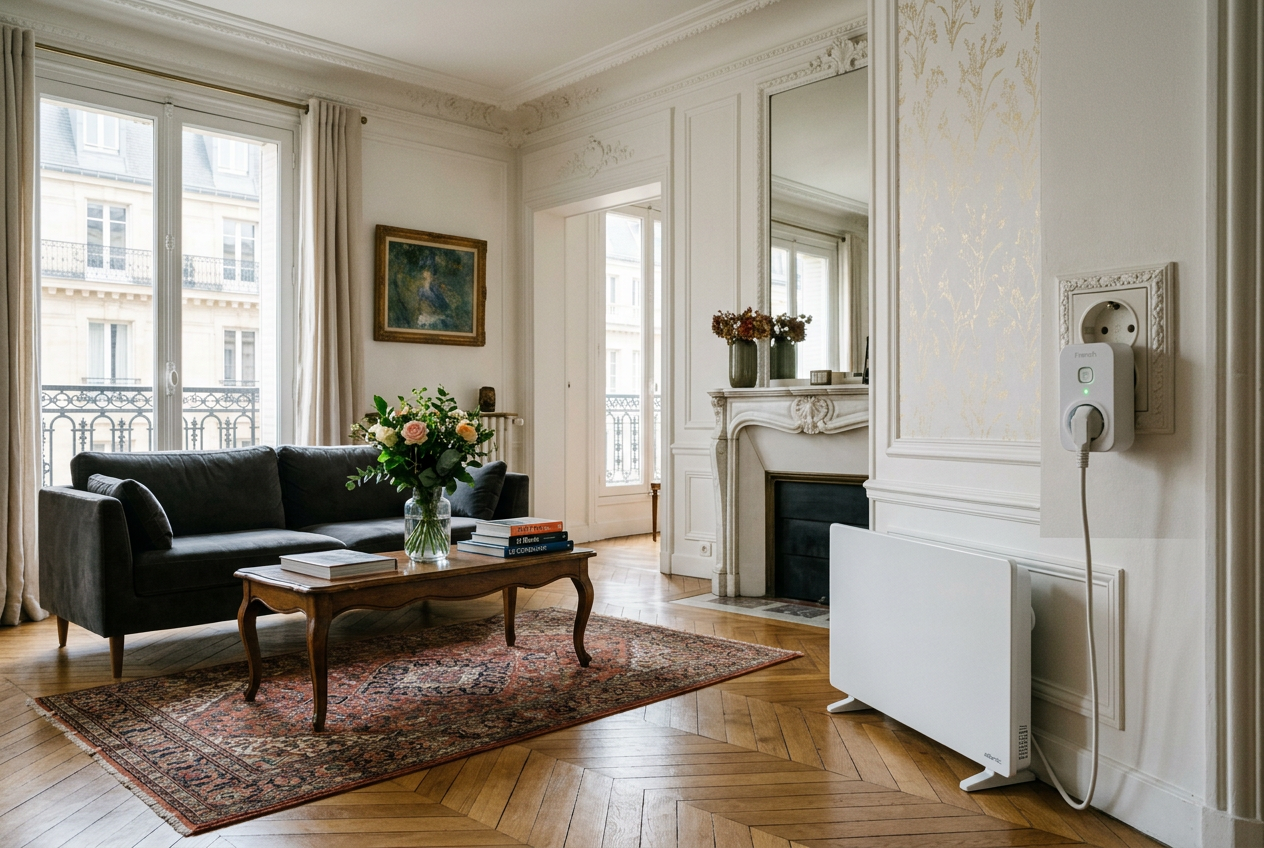

•see scene image: DL1606M-FRA-plug-fr-paris-apartment-radiator.png
Plug Fr Paris Apartment Radiator

•see scene image: DL1606M-FRA-plug-fr-paris-apartment-radiator.png

Frequently Asked Questions

Q: What is the maximum load this smart plug supports?
Standard SKUs handle 10–16 A resistive (≤2400 W @ 230 V); USB-loaded variants reduce mains capacity slightly. Check the specific model badge.
Q: Does it offer real-time energy monitoring?
Yes — voltage / current / power / kWh are reported every 30 s and logged for 12 months in the cloud.
Q: Can the schedule still run if Wi-Fi is offline?
Yes. Up to 30 local schedules are stored on-chip and execute autonomously.
Q: Which regional plug standards are supported?
GBR (BS 1363), DEU/FRA/ITA (Schuko / French / Italian), USA (NEMA 5-15), AUS (AS/NZS 3112), BRA (NBR 14136).
Q: Does it have over-load and over-temperature protection?
Yes — auto cut-off at 16 A overload or 105 °C internal trip, plus a manual reset button.
Q: Can I integrate it with Matter?
Yes, all current SKUs are Matter 1.2-ready via firmware update through the Tuya app.
