Product Overview

Elite Elegance 41 Range | TAOS Electric

Model: 41301 | MPN: EE-41301 | Range: 41 Range Screwless

The Elite Elegance 41301 is a single-gang 1-way rocker switch in the 41 Range, engineered by Zhejiang Tao's Electric (est. 2000) for residential and commercial lighting control. Built around a UV-stable, flame-retardant polycarbonate panel (750 °C glow-wire) with a large full-face rocker key, the 41301 fits the universal 86 × 86 mm flush-wall box shared by every 41 Range switch, socket and data outlet — one back-box layout for the whole project. CE, BSI, SASO, SONCAP, ISO 9001, and RoHS compliance is independently certified; the SKU is registered in 30+ countries across the Middle East, Africa, Europe and SE Asia

The 41301 1-Gang 1-Way Switch from Zhejiang Tao's Electric Co., Ltd. provides dependable manual control for British Standard lighting circuits. Founded in 2000 as a specialised manufacturer of British Standard wiring accessories in Wenzhou, the company has developed into an international brand group with the Elite Elegance and TAOS trademarks. Serving distributors, contractors and project developers in over 48 countries, Elite Elegance maintains more than 20 product ranges and 1,000-plus SKUs with annual export volume exceeding 100 million RMB.

The 41301 is a classic 1-gang switch configured as a 1-way switch for straightforward on-off operation of a single lighting point. This 1-gang switch features a durable rocker mechanism, secure terminal connections and a finish that complements contemporary interiors. Although the unit itself is a traditional mechanical device, it aligns with current smart home switch trends by serving as a reliable base layer that can later integrate with automated systems. Energy-efficient switches of this type help reduce standby losses when paired with modern LED loads, making the 1-way switch a practical choice for projects seeking both simplicity and long-term efficiency.

Installation of the 41301 1-gang switch follows standard British Standard practices. The 1-way switch mounts into a single gang box and accepts conventional wiring methods familiar to electricians across target markets. Once fitted, the 1-gang switch delivers positive tactile feedback and consistent contact performance. In environments influenced by smart home switch trends, this mechanical 1-way switch can coexist with more advanced controls, providing a fail-safe manual option. Energy-efficient switches such as the 41301 contribute to lower overall consumption when used to manage low-wattage lighting.

Application range for the 41301 1-gang switch includes residential rooms, commercial corridors and hospitality spaces. In homes the 1-way switch controls bedroom or living-area lights with familiar operation. In offices the same 1-gang switch manages individual task lighting while remaining compatible with broader smart home switch trends. Project developers value the straightforward specification of this 1-way switch for cost-effective installations that still support energy-efficient switches strategies. Hotels and apartments benefit from the robust construction that withstands frequent daily use.

Innovation in the 41301 centres on refined mechanical reliability within a standard 1-gang switch format. While smart home switch trends continue to expand digital options, the demand for a dependable 1-way switch remains strong. Precision contact design and high-quality materials ensure the 1-gang switch maintains low resistance and minimal heat generation, characteristics that align with the goals of energy-efficient switches. The product therefore bridges traditional expectations and contemporary efficiency requirements without unnecessary complexity.

Technical advantages include positive switching action, secure screw terminals and a housing designed for long service life. The 1-way switch operates smoothly across typical voltage and current ratings for lighting circuits. When installed as part of an energy-efficient switches approach, the 41301 1-gang switch helps eliminate parasitic loads by providing a true off state. Compatibility with British Standard faceplates and mounting boxes further simplifies specification for contractors following established practices while remaining open to future smart home switch trends.

Quality assurance follows the rigorous standards applied across Elite Elegance product lines. Each 41301 1-gang switch undergoes mechanical endurance testing, electrical continuity checks and dimensional verification before shipment. Distributors and project developers therefore receive a 1-way switch that meets expectations for both daily reliability and alignment with energy-efficient switches objectives. The combination of proven mechanical performance and relevance to evolving smart home switch trends positions the 41301 as a practical choice for a wide range of installations.

In everyday use the 41301 1-gang switch offers familiar, maintenance-free control. Users appreciate the clear on-off indication and solid feel of the 1-way switch. When projects later adopt elements of smart home switch trends, the existing 1-gang switch can remain in place as a manual override. Energy-efficient switches of this design continue to support reduced energy consumption throughout the life of the installation.

Overall, the 41301 1-Gang 1-Way Switch delivers essential lighting control in a compact 1-gang switch format. By combining reliable 1-way switch operation with relevance to smart home switch trends and the practical benefits of energy-efficient switches, the product meets the needs of residential, commercial and project-based applications while upholding the engineering standards associated with Elite Elegance.

Why Specify 41301?

Four engineering decisions that make a standard switch behave like a premium one.

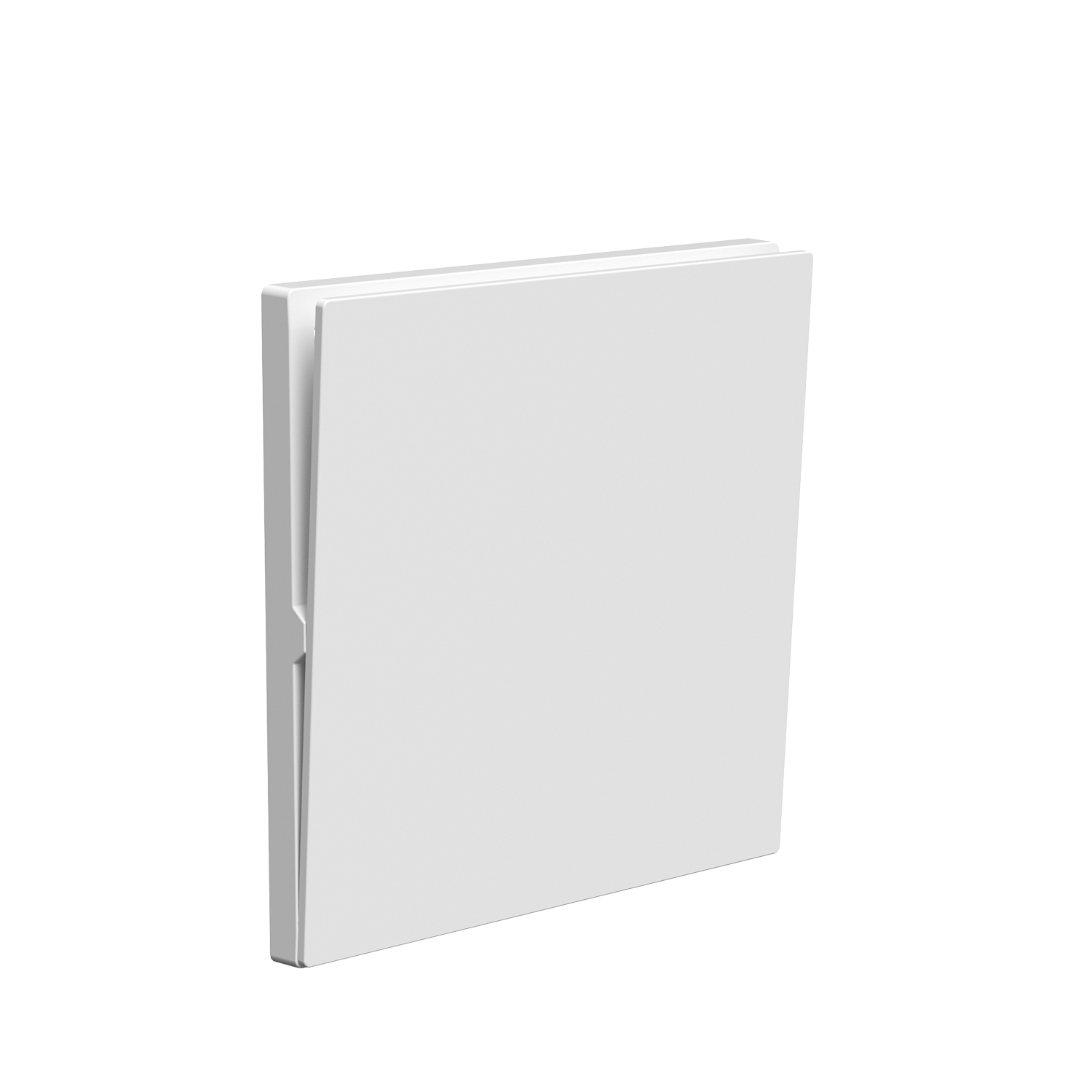

Full-Face Rocker Key

Large 70 mm rocker surface — easy to locate in darkness, operable with an elbow or palm. Silent-action mechanism rated 100,000 cycles.

10A / 250V AC Rating

Rated 10A at 250V AC, suitable for incandescent, LED, CFL and fluorescent loads up to 2,500W. Silver-alloy contacts reduce arc erosion..

UV-Stable PC Panel

Polycarbonate front plate with 750 °C glow-wire rating and 6 × UL94 V-0 flame class. Will not yellow under tropical UV — stays white for 15+ years.

Universal 86 mm Wall Box

Same back-box and fixing centres as all 41 Range switches and sockets — one project, one install specification.

Detailed Specifications

Datasheet excerpts — full datasheet PDF available on request.

Parameter Value
Switch Type 1-Gang 1-Way (single-pole)
Current Rating 10A
Voltage Rating 250V AC, 50/60 Hz
Contact Material Silver alloy (AgCdO)
Mechanical Life ≥ 100,000 operations
Electrical Life ≥ 40,000 operations at rated load
Dielectric Strength 2000V / 1 min
Insulation Resistance > 5 MΩ @ 500V DC
Terminal Type Screwless quick-connect (push-in)
Wire Capacity 1.5 – 2.5 mm² solid / stranded

Certifications & Compliance

Authoritativeness signals — independent third-party verification of every test marked above.


CE Marking (EU)

EN 60669-1 / EMC Directive 2014/30/EU


UKCA

BS1363, UK market


SASO / SQM (Saudi Arabia)

SABER-registered for KSA customs clearance


SONCAP (Nigeria)

Standards Organisation of Nigeria Conformity Assessment


GCC / G-mark

Gulf Cooperation Council


ECAS

UAE market


RoHS 2.0

Free of lead, cadmium, mercury, hexavalent chromium


CB Scheme

IECEE certificate, fast-track recognition in 50+ countries

Typical Application Scenarios

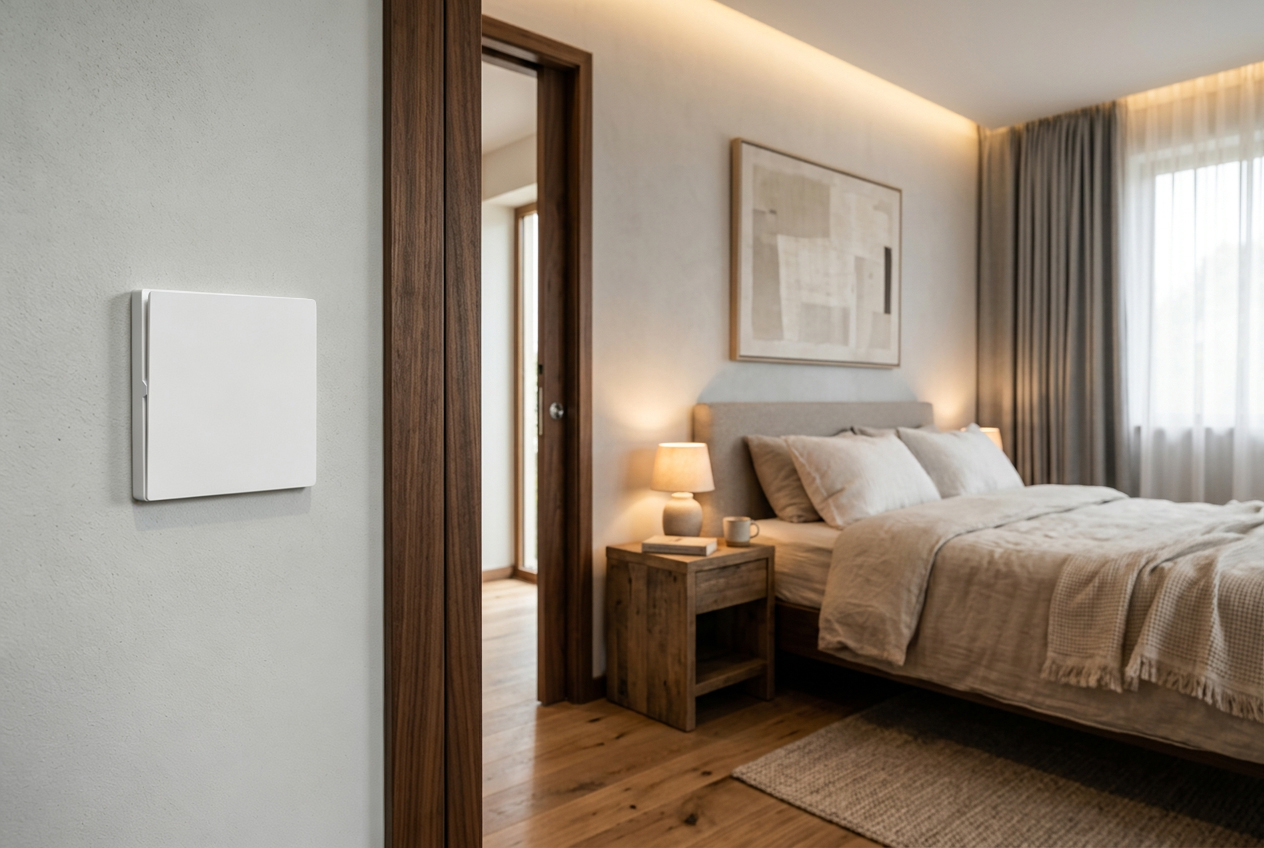

Residential Bedrooms & Living Rooms

single-point ceiling light control beside the door

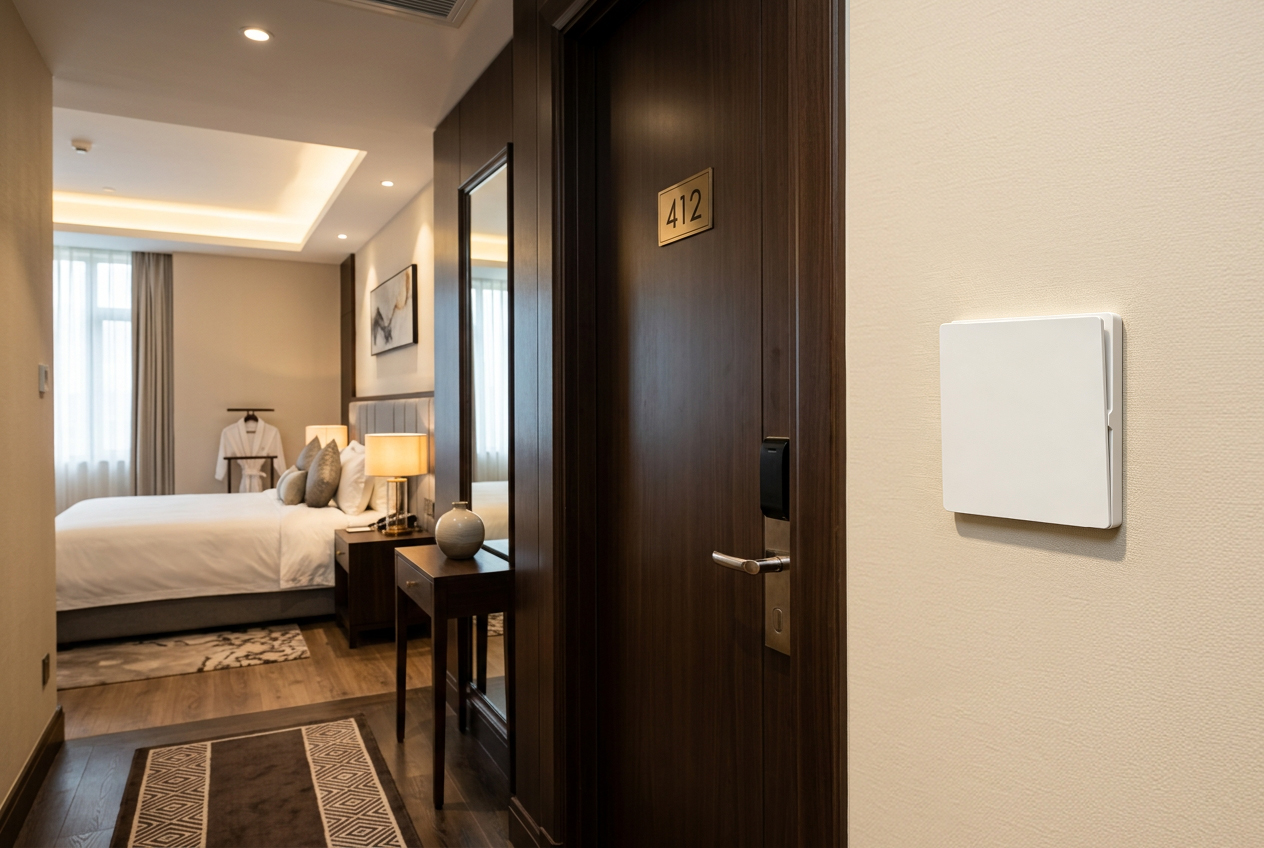

Hotel Guest Rooms

bedside or entry single-circuit lighting

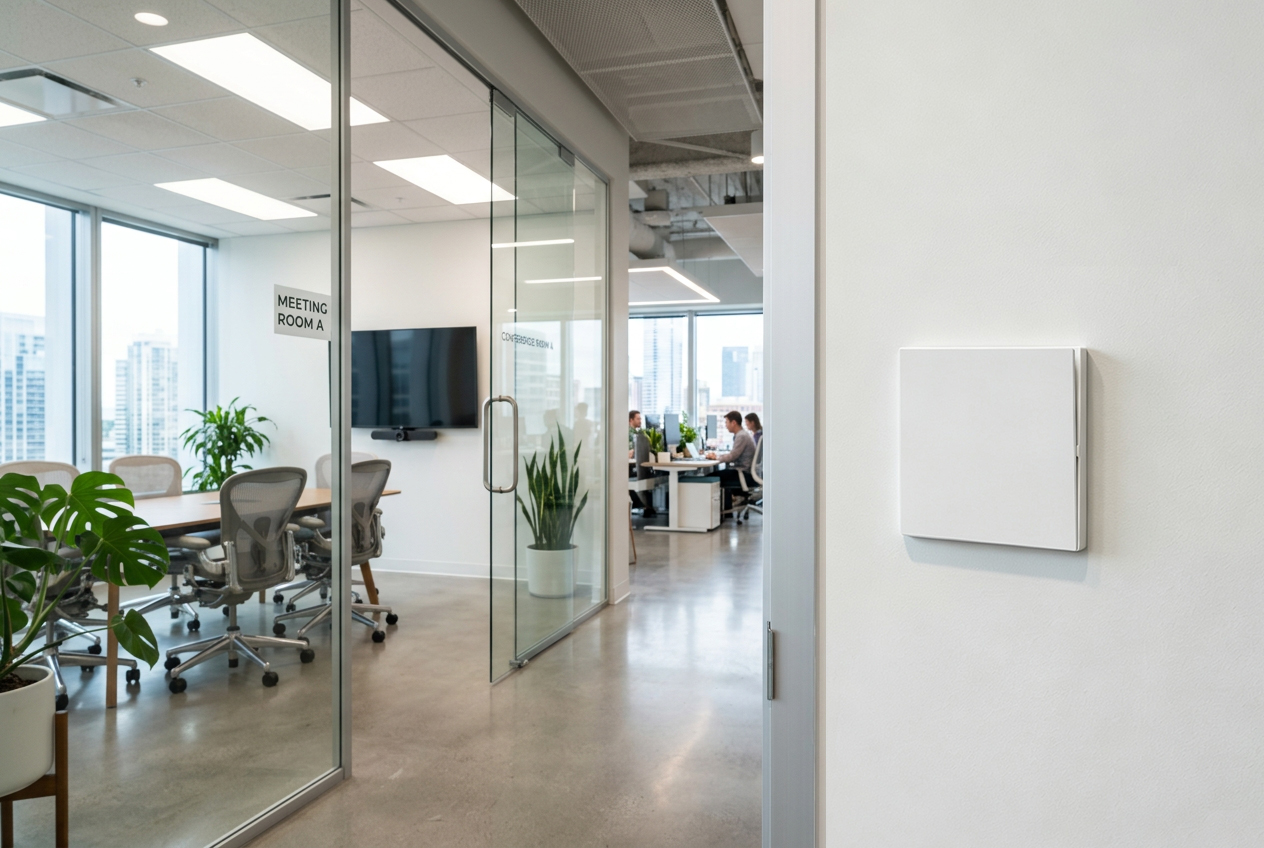

Commercial Offices

individual room or zone on/off control for energy saving

Frequently Asked Questions

What type of switch is the 41301?

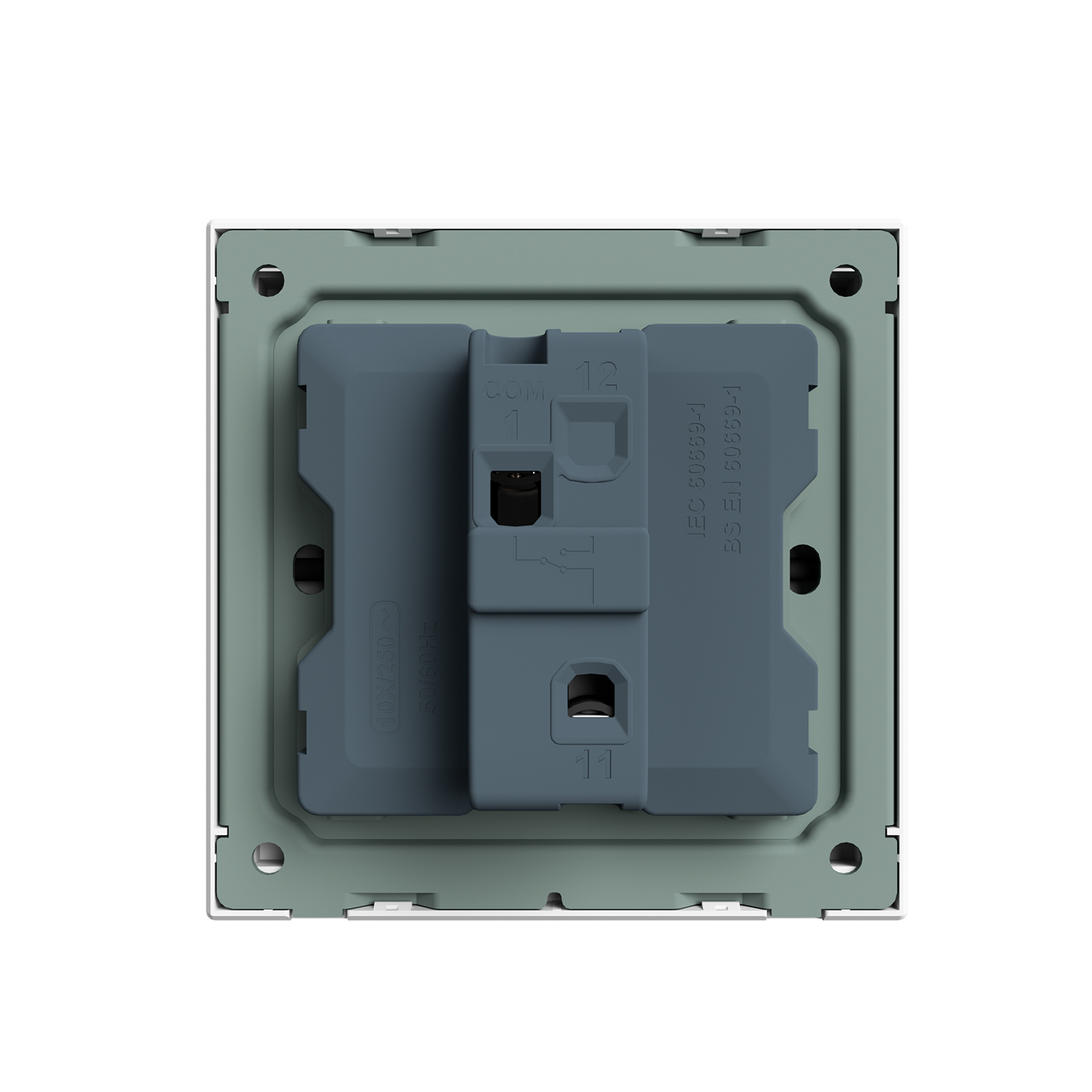

The 41301 is a 1-Gang 1-Way rocker switch in the Elite Elegance 41 Range, rated 10A / 250V AC. It features a single-pole mechanism with one common terminal (COM) and one switched terminal (L1), suitable for controlling a single lighting circuit from one location.
What wall box size does the 41301 fit?
The 41301 fits the standard 86 × 86 mm flush-mount wall box. This is the same box used across the entire 41 Range, allowing switches, sockets and data outlets to share a single installation specification.
Is the 41301 certified for export to the Middle East and Africa?
Yes. The 41301 holds CE, BSI Kitemark, SASO (Saudi Arabia), SONCAP (Nigeria), CB Scheme, and ISO 9001 certifications. It is registered for import in 30+ countries across the Middle East, Africa, Europe and South-East Asia.
What is the minimum order quantity (MOQ) and lead time?
Standard MOQ is 1000 pieces per SKU. Samples ship within 7 days. Production orders ship within 15–25 days FOB Ningbo. OEM/custom branding orders require 30–45 days.
Can the 41301 handle LED lighting loads?
Yes. The silver-alloy contacts are designed for both resistive and inductive loads. The 41301 reliably switches LED drivers, CFL ballasts, incandescent bulbs and fluorescent fixtures up to the 10A / 250V rated capacity.
What is the difference between 41301 (1-Way) and 41302 (2-Way)?
The 41301 is a 1-way switch with two terminals (COM + L1) for single-point control. The 41302 is a 2-way switch with three terminals (COM + L1 + L2), enabling two-point control of the same light from different locations (e.g. top and bottom of a staircase).
